NYX EMERGENCY EXIT LIGHT WEATHERPROOF

Illuminate your path. Rain or Shine! Experience a new level of reliability and performance with New Zealand's FIRST IP65 rated blade exit fitting.

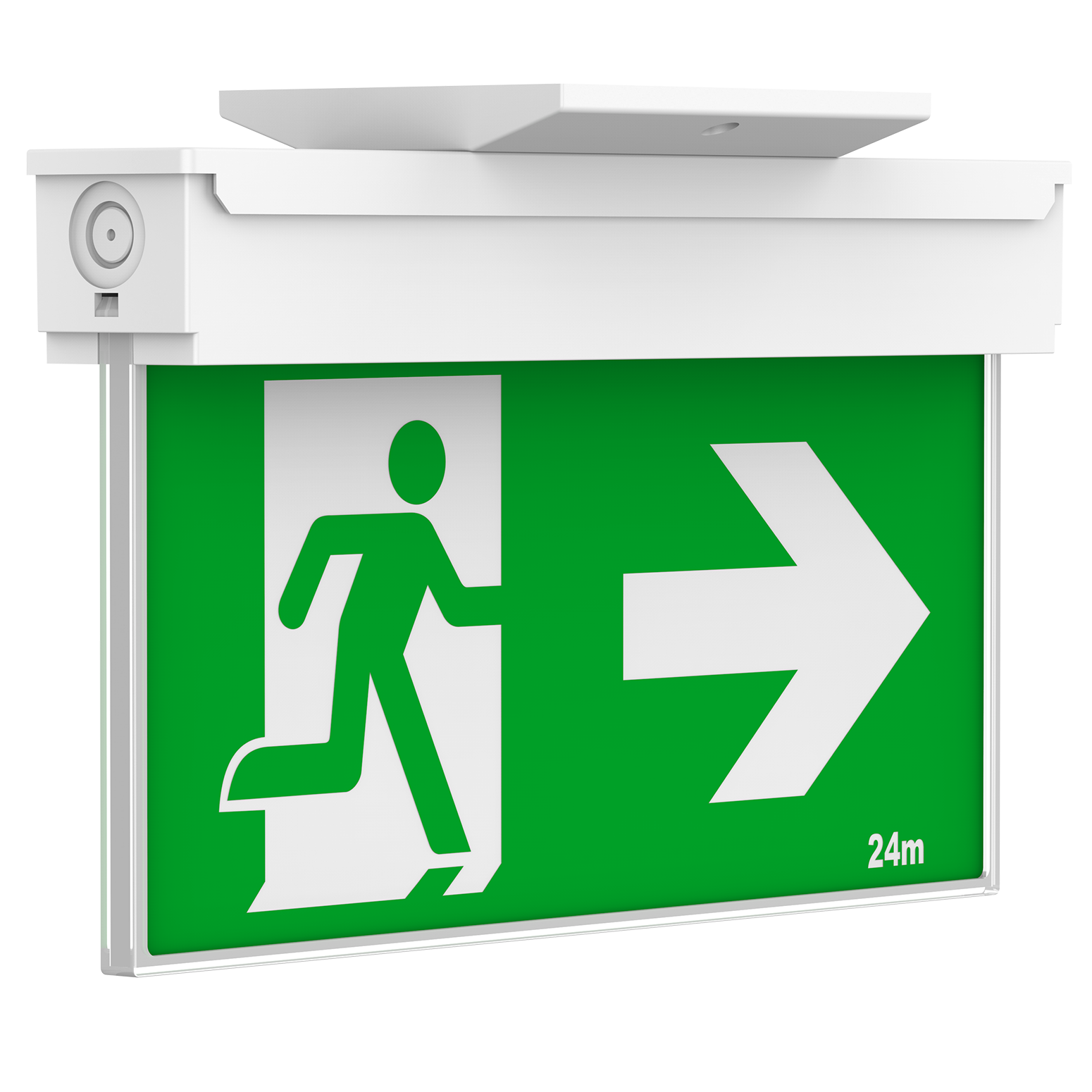

Elmark NYX Emergency Exit Light Image
ILLUMINATE YOUR PATH.
RAIN OR SHINE!

New Zealand's first IP65 rated blade exit fitting

Experience a new level of reliability and performance with the groundbreaking NYX Weatherproof Emergency Exit Light. Engineered to surpass all expectations, the NYX combines cutting-edge technology with unparalleled durability, ensuring your safety is never compromised, even in the harshest of conditions.

weatherproof_icon

Weatherproof

Rated for IP65, NYX is well prepared for harsh conditions

weatherproof_icon

5 Year Warranty

Enjoy the peace of mind with our comprehensive five-year warranty.

50K_icon

50K HR Lifespan

Rated for 50,000 Hours of lifespan.

mount_icon

5 Mounting Solutions

5 mounting solution accessories available for purchase seperately.

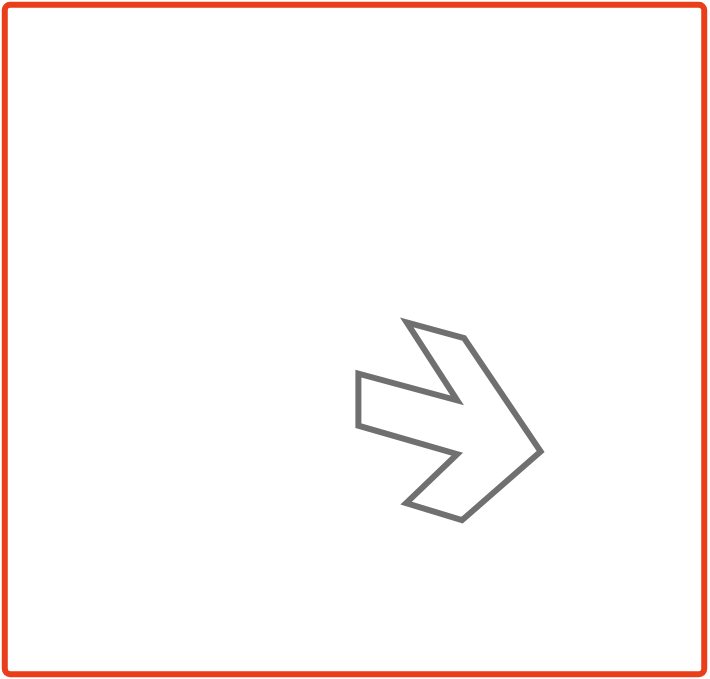

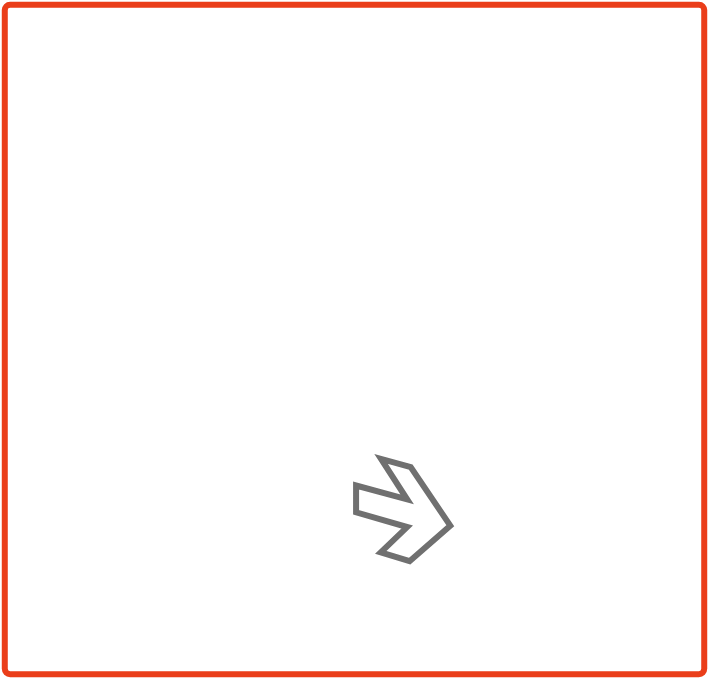

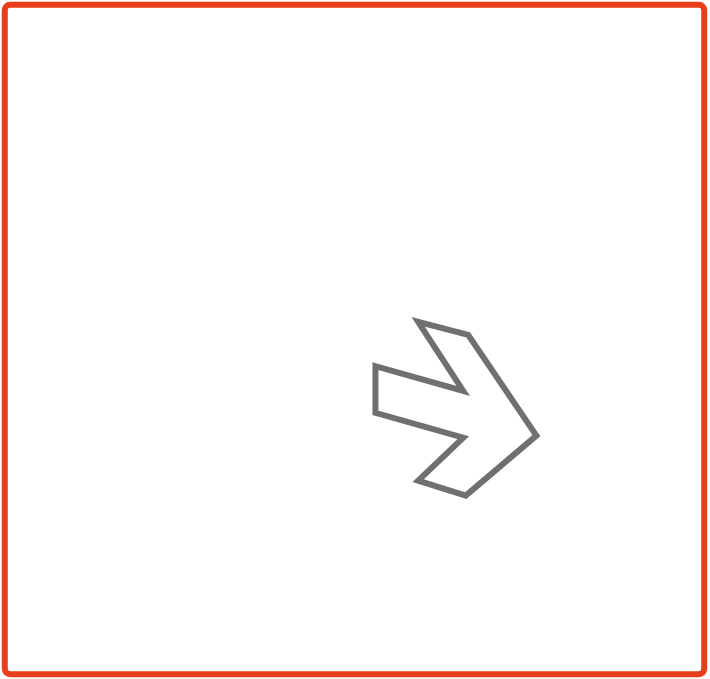

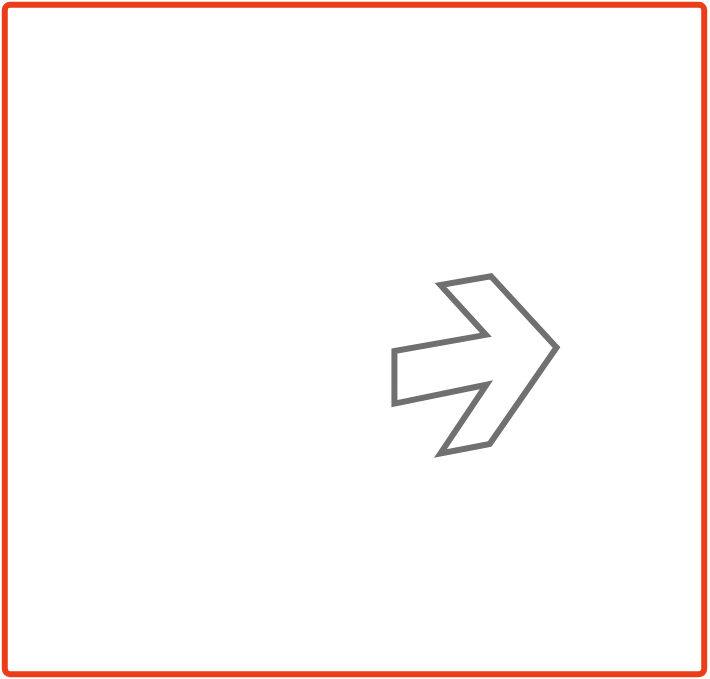

4 MOUNTING SOLUTIONS

NYX can be installed with 4 different mounting solution accessories. Accessories are available for purchase seperately.

TECHNICAL DATA

GENERAL
Voltage 220-240VAC, 50/60Hz
Mains Power 3W Max
Emergency Power 1W Max
Battery LiFePO4 3.2V 600mAh
Charge Time ≥16H
Discharge Duration ≥2H
CCT / CRIn 6000K / Ra>80
Visibility 24M
Test Mode MT / DALI
Wiring Terminal Block (0.75-6mm²)
Protection Class Class II
IP Rating IP65
STRUCTURE
Material PC
LGP 3W Max
Decal 1W Max
Operating Temp (°C) 0°C ~ 45°C
Mounting Type Ceiling / Side / Wall / Pendant
ACCESSORIES
Ceiling Mount EN2465W-CM
Side Mount EN2465W-CB
Back Mount EN2465-BP
Pendant Mount EN2465-SUS

DOWNLOADS

TECHNICAL DATASHEET
DOWNLOAD (1.5mb)

INSTALLATION GUIDE
DOWNLOAD (1.2mb)
